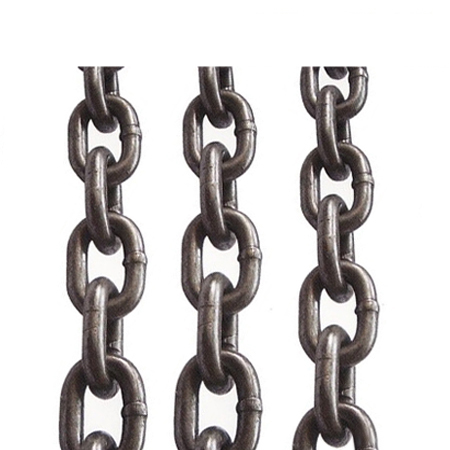

DIN 764 link Chain
Material: Carbon Steel
Type: DIN 766
Surface: Galvanized / Hop-dip Galvanized / Self Colored / Power Coated
Application: Not suitable for lifting

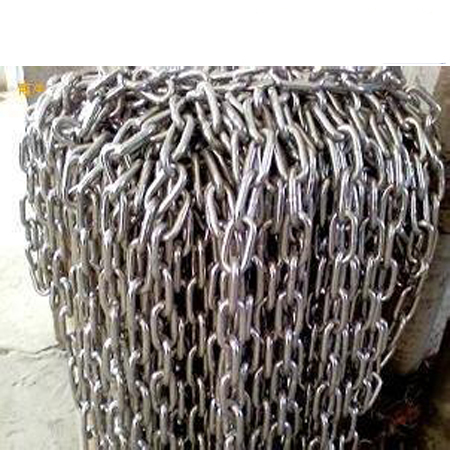

Package: Drums Pails Reels Hanks…
Brand: KW
Chain DIN 764 is a sort of round steel link chain for conveyors. The available steel grades are grade 2, grade 3, and grade 5. The chain is calibrated and tested. There are two types of tolerance; A tolerance class A for use with chain weels; B tolerance class B for use with rollers. It should be noted that the DIN 764 chain should not intended for use as lifting chains or chain slings.
| Size | Inside Length | Inside Width | Outside Width | Length Per 11 Links | Weight Per 100m | Breaking Load |
Test Load |
|||
| mm | +-mm | mm | +-mm | mm | mm | mm | +-mm | KG | KN | KG |
| 4 | 0.20 | 16 | 0.30 | 5 | 14 | 176 | 1.60 | 31.3 | 7 | 400 |
| 0.20 | 0.90 | |||||||||
| 5 | 0.20 | 18 | 0.40 | 7 | 18.2 | 198 | 1.80 | 51.4 | 11.8 | 680 |
| 0.20 | 1.00 | |||||||||
| 6 | 0.20 | 21 | 0.50 | 8 | 21.5 | 231 | 2.00 | 74.0 | 16.5 | 850 |
| 0.20 | 1.10 | |||||||||
| 8 | 0.20 | 28 | 0.50 | 11 | 29 | 308 | 2.20 | 131.5 | 32 | 1680 |
| 0.30 | 1.20 | |||||||||
| 10 | 0.30 | 35 | 0.60 | 14 | 36 | 385 | 2.70 | 200 | 50 | 2630 |
| 0.30 | 1.50 | |||||||||
| 13 | 0.40 | 45 | 0.70 | 18 | 47 | 495 | 3.50 | 350 | 80 | 4200 |
| 0.40 | 2.00 | |||||||||
| 16 | 0.50 | 56 | 0.90 | 22 | 58 | 616 | 4.30 | 520 | 125 | 6700 |
| 0.50 | 2.50 | |||||||||
| 18 | 0.80 | 63 | 1.00 | 24 | 65 | 693 | 4.70 | 650 | 160 | 8400 |
| 0.50 | 2.80 | |||||||||
| 20 | 1.00 | 70 | 1.10 | 27 | 72 | 770 | 5.40 | 820 | 200 | 10000 |
| 0.60 | 3.20 | |||||||||
| 23 | 1.20 | 80 | 1.30 | 31 | 83 | 880 | 6.20 | 1100 | 250 | 13000 |
| 0.70 | 3.50 | |||||||||
| 26 | 1.30 | 91 | 1.50 | 35 | 94 | 1001 | 7.00 | 1400 | 320 | 16000 |
