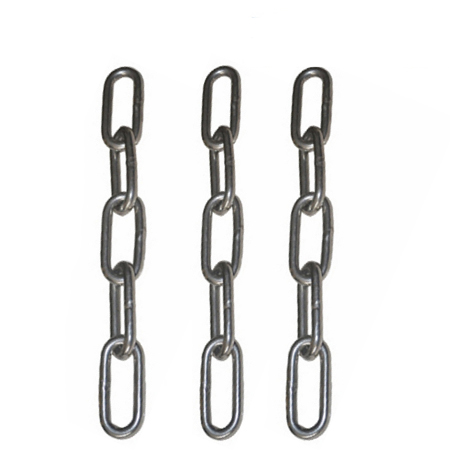

Chain DIN 763 is a kind of welded long link chain. Long link chain should never be used as a sling in either “ basket” hitch or chokes configuration. Chain DIN 763 is non-calibrated and tested. The chain is made to DIN 763 and EN standards, with links side welded for extra strength and quality tested. The chain is suitable for all general purposes, engineering, industrial, agricultural and marine applications in conjunction with our accessories. The protective finished of the chain DIN 763 are zinc plated, black painted, hot dip galvanized, power coated, or as your requuest. Please contact us if you have any specific requirements.

Size		Inside Lenght		Outside Width		Working Load	Test Load	Breaking Load	Weight Per M
mm	±mm	mm	±mm	mm	±mm	KG	N	N	KG
3	0.5	26	1.2	12	0.6	55	1050	3200	0.15
4		32	1.5	16	0.8	100	2000	6000	0.27
5		35	1.8	20	1	160	3150	10000	0.43
6		42	2	24	1.2	224	4500	14000	0.63
7		49	2.5	28	1.4	300	6000	18000	0.86
8		52	2.5	32	1.6	400	8000	25000	1.1
9		59	3.0	36	1.8	530	10500	32000	1.41
10	1	65	3.2	40	2.0	630	12500	40000	1.75
11		72	3.4	44	2.0	790	15800	47500	2.11
12		78	3.6	48	2.3	940	18800	56500	2.55
13		82	4	52	2.5	1000	21200	63000	2.95
16		100	5	64	3.2	1600	33000	100000	4.45
18		113	5.2	70	3.2	2120	42300	127000	5.65
19		119	5.6	72	3.4	2370	47300	142000	6.25
20		120	6	75	3.8	2500	50000	160000	7.0
22		127	6	82	4.0	3170	63300	190000	8.55
25		140	6.6	88	4.2	4090	81700	245000	10.90
28		152	7.0	96	4.7	6000	120000	300000	13.9
32		171	7.8	108	5.2	8000	160000	400000	18.2
