DIN 5685 Chain
Material: Carbon Steel
Type: DIN 5685
Surface: Galvanized / Hop-dip Galvanized / Self Colored / Power Coated
Application: Not suitable for lifting
Package: Drums Pails Reels Hanks…
Brand: KW

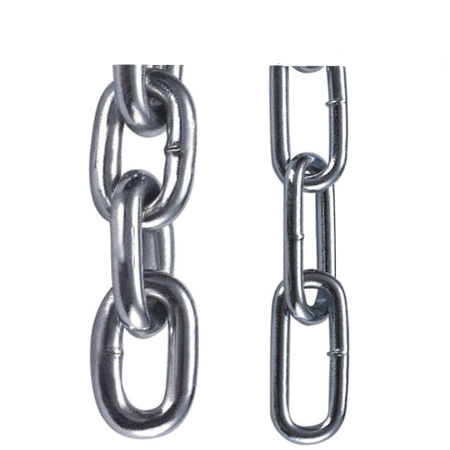

DIN 5685 chain is a sort of weled, round steel chain with llong or short-length links that are neither calibrated nor tested. DIN 5685 chain meets to German Standard. The material of chain is in line with DIN 17151. The chain are not suitale for lifting applications, nor being subjected to static loads. There are two type of the chain of DIN 5685, A (short) and C (long). We are able to offer relevant accessories of chain.
| Size | Inside Length | Outside Width | Weight Per 100m | Working Load | Breaking Load | Grade |
| mm | mm | mm | KG | N | N | |
| 2 | 12 | 8 | 7 | 500 | 1250 | A |
| 22 | 6 | C | ||||
| 2.5 | 14 | 10 | 11 | 750 | 2000 | A |
| 24 | 10 | C | ||||
| 3 | 16 | 12 | 16.5 | 1120 | 2800 | A |
| 26 | 15 | C | ||||
| 4 | 19 | 16 | 30 | 2000 | 5000 | A |
| 32 | 27 | C | ||||
| 5 | 21 | 20 | 50 | 3150 | 7750 | A |
| 35 | 43 | C | ||||
| 6 | 24 | 24 | 73 | 4500 | 11500 | A |
| 42 | 63 | C | ||||
| 7 | 28 | 28 | 100 | 6000 | 15000 | A |
| 49 | 86 | C | ||||
| 8 | 32 | 32 | 130 | 8000 | 20000 | A |
| 52 | 110 | C | ||||
| 9 | 36 | 36 | 165 | 10000 | 25000 | A |
| 59 | 141 | C | ||||
| 10 | 40 | 40 | 205 | 12500 | 31000 | A |
| 65 | 175 | C | ||||
| 11 | 44 | 44 | 250 | 15000 | 38000 | A |
| 72 | 211 | C | ||||
| 12 | 48 | 48 | 290 | 18000 | 45000 | A |
| 78 | 255 | C | ||||
| 13 | 52 | 52 | 345 | 21200 | 53000 | A |
| 82 | 295 | C |
